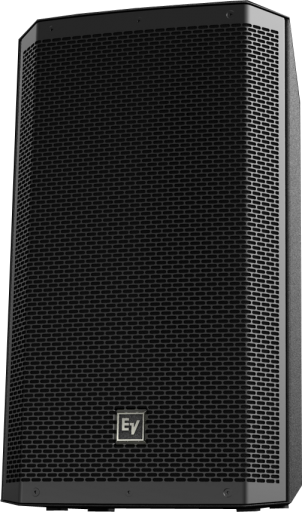

ZLX-12
12" passive loudspeaker
- 12” woofer for low-end punch in a compact enclosure and 1.5” high-frequency
- titanium compression driver
- 55 Hz – 20 kHz frequency range
- 250 W continuous and 1000 W peak power handling
- 95 dB SPL sensitivity; 125 dB max SPL.8 lbs (14.9 kg)
Big sound doesn’t need to take up a lot of space. Ideal for main loudspeaker or monitor wedge duties, the ZLX-12 offers the ultimate combination of performance and portability – and always looks great on stage.
SPECIFICATIONS
Frequency Response
82 Hz - 18 kHz¹
Frequency Range
55 Hz - 20 kHz
Axial Sensitivity
95 dB
Maximum SPL
125 dB
Recommended HP Frequency
40 Hz
Coverage (Hort. x Vert.)
90° x 60°
Power Handling
250 Watts Continuous, 1000 Watts Peak
LF Transducer
EVS-12K, 300 mm (12 in) Woofer
HF Transducer
DH-1K
Crossover Frequency
2.1 kHz
Nominal Impedance
8 Ω
Minimum Impedance
7 Ω
Connectors
Dual NL4
Enclosure
Polypropylene
Grille
18 Gauge Steel with Black Powder Coat
Dimensions
(H x W x D) 610 mm x 356 mm x 356 mm (24 in x 14 in x 14 in)
Net Weight
14.9 kg ( 32.8 lb)
Shipping Weight
18.0 kg ( 39.6 lb)
