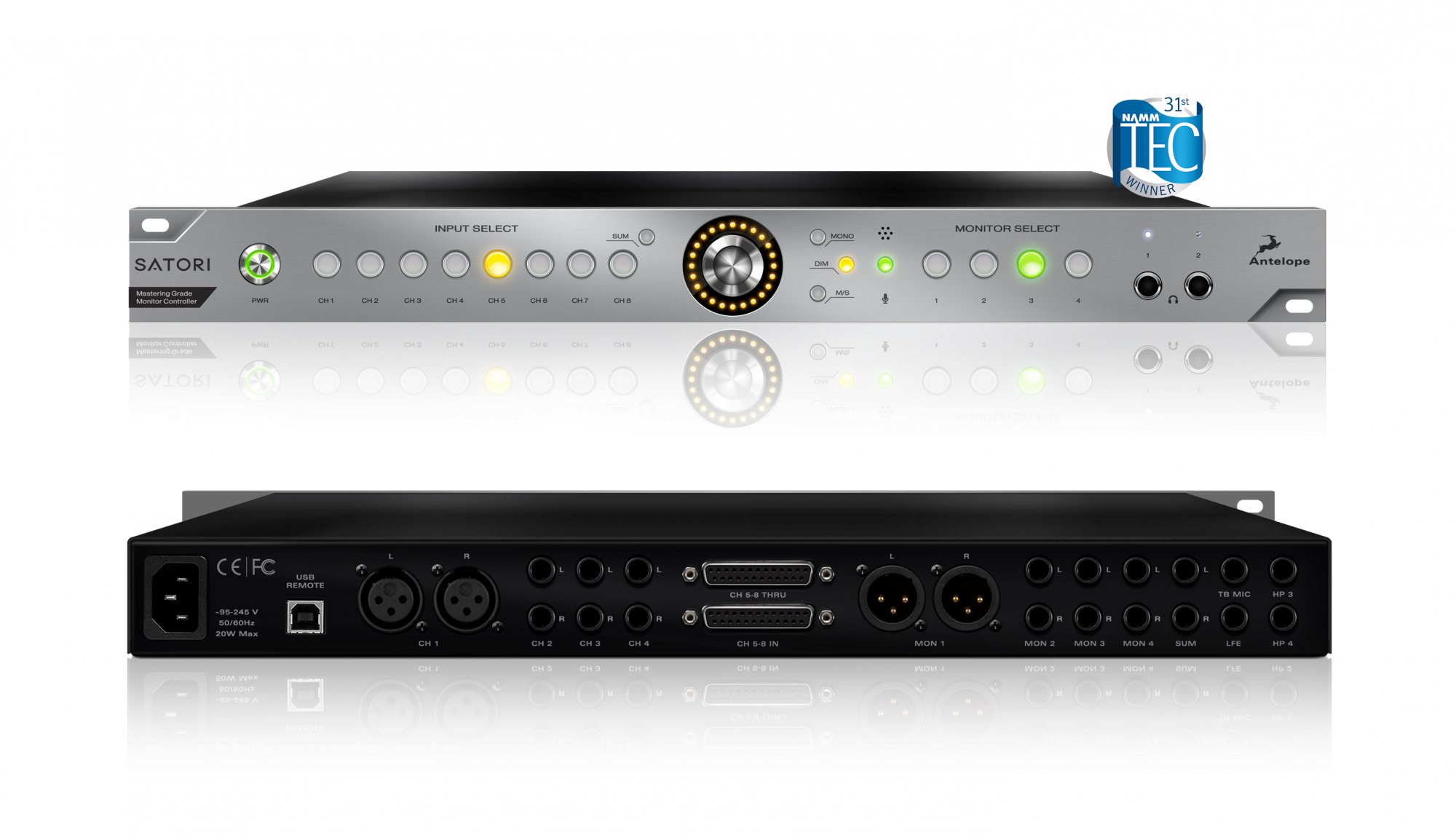

Satori
TEC Award Winning High-End Monitoring Controller
Features:
- Pristine analog sound with digital control
- Mobile app to control your monitoring system
- 4 Audiophile-grade headphone amps and talkback
- Precise-stepped relay volume control
- Analog summing functionality
- Generous amount of connectivity options
- Flexible remote control (included in the R4S bundle)
- User-friendly desktop app for Windows & OS X
Description:
TEC Award winning Satori is a digitally-controlled true analog monitoring and summing system designed for
today’s studios. Antelope’s Orion32 and Zen Studio interfaces have both been praised for their digital clarity,
while maintaining the realism of analog sound. Satori features the same high level of uncompromising sound
quality thanks to advanced analog circuit design.
Now Satori comes with a free mobile application available for iOS and Android mobile devices. The
intuitive app turns your smartphone or tablet into a professional remote control for your monitoring
system. It completely manages Satori’s entire functionality, giving the producer the comfort of having
fast and easy monitoring control at their fingertips. Antelope's flexible software architecture allows
you to have multiple mobile devices connected to the same Satori. This provides artists the
opportunity to control the volume levels on their headphones themselves, while the engineer retains
the control of the monitoring functions from the control room or even the play room while setting-up.
Mastering-grade transparency
Satori provides a monitoring solution that maintains sonic accuracy while routing and switching between
source material, especially when the D/A is handled by the clear and natural-sounding Antelope family of
converters. Antelope Audio’s extensive background in designing pristine analog circuitry, highly optimized
PCB layout and power supply technology result in mastering-grade transparency at a project studio price.
Innovative attenuator architecture with utmost precision
Whereas relay attenuators, being mechanical switches, provide the best sound quality, they suffer from
popping or zippering artifacts when the volume is adjusted. Satori employs an innovative, patent-pending
technology that dramatically reduces these artifacts while retaining all the advantages and excellent sonic
performance of the relay attenuators. The greatest advantage of using relays is that they achieve 0.05 dB
stereo accuracy and stable L/R balance even at lower listening levels. Satori also boast .5db increments of
source and output trim offset control. This pristine, passive attenuator signal path fully preserves audio signal
integrity while revealing even the most subtle nuances.
Analog sound with with flexible remote control
Switching and adjusting inputs and outputs, assigning headphone monitoring for the artists and even
talkback, is now possible from anywhere in the studio. This is all achieved due to the Satori's elegant front
panel, software control panel, ergonomic remote control and now a mobile application.
Flexible and accurate control capabilities are made possible by Antelope’s next generation of software
control panel technology, which has opened the door to a whole new generation of analog devices, such as
the Satori Monitoring System and MP32 32-channel mic preamp. For Satori this means fast and responsive
source and speaker output switching, accurate remote volume control and also Mute, Mono, Dim, Mid/Side
monitoring.
Satori is bundled with a bus-powered remote control – R4S. The remote is specially designed for Satori,
completely replicating the front panel functionality. It provides engineers with ease and ergonomics,
controlling Satori directly from the mix position. R4S allows for lightning fast control of all sources and
monitors, as well as talkback.
Analog summing functionality
In addition to providing outstanding monitoring capabilities, Satori includes a fully analog 8-channel summing
mixer. Analog summing allows engineers who work completely “in-the-box” to mix signals in the analog
domain for a more natural blending of instruments. The summing mixer inside Satori maintains punch,
headroom and excellent dynamics, while offering the analog sound usually found only from legendary analog
consoles.
Headphone amps and talkback
Surpassing most monitoring controllers, which offer one or two headphone outs, Satori features four
independent headphone amps ready to provide several band members their own, unique input feed with
independent volume control. Satori’s headphone drivers are audiophile-grade and are the same as those
used in Antelope’s premium line of high-end home audio converters, able to drive both low and high
impedance headphones.
A unique software talkback solution allows for instant communication with performers. Satori provides great
flexibility by offering several kinds of talkback mic sources – via the built-in mic on the front panel or R4S; the
1/4” TRS connector on the rear panel or the built-in mic in the engineer’s laptop, and the mic on your phone
when using the Satori App.
An abundant number of I/Os
Satori provides a generous amount of connectivity options. No other 1U monitoring system has eight stereo
inputs and four stereo outputs and features such a comprehensive choice of connections: XLR, 1/4” TRS
and D-Sub 25. Satori also boasts a subwoofer output and four 1/4” independent headphone outs.
SPECIFICATIONS:
Analog Inputs
4 x Stereo Pair Line Level Inputs. Ch1 on XLR & Ch2-4 on TRS
4 x Stereo Line Level Inputs on D-Sub 25
1 x Talkback Mic Preamp on TRS
Analog Outputs
4 x Stereo Line Level Outputs on D-Sub 25
4 x Stereo Pair Monitor Outputs, Mon1 on XLR and Mon2-4 on TRS
1 x Line Level Stereo Sum Output on TRS
1 x LFE Output on TRS
4 x Headphone Outputs (two on the rear and two on the front) on TRS
USB I/O
USB 2.0 Hi-Speed, Type B
For use with the software control panel
Dynamic Range
132dB
THD + N
127dB
Operating temperature
0-50° C / 32-122° F
Weight
~2kg / 4,4lb approx.
Dimensions
Width: 483 mm / 19” /Rack/
Height: 44 mm(1U) / 1,75”
Depth: 220 mm / 8,66”
Power Supply
AC Universal input ~95-245 V
Power Consumption
25 Watts Max.
System Requirements
Windows
OS: Windows 7/8/8.1/10
Disk Space: Minimum 512 MB available disk space
USB: 1x USB 2.0 Port
Required USB bandwidth (for firmware update): 80%-90%
CPU: Intel or AMD equivalent CPU with at least 2GHz operating frequency
Memory (RAM): 4GB Minimum (8GB or more Recommended)
MAC
OS X: 10.9/10.10/10.11/10.12 (Sierra Recommended)
Disk Space: Minimum 512 MB available disk space
USB: 1x USB 2.0/3.0 Port
Required USB bandwidth: 80%-90%
Memory(RAM): 4GB Minimum (8GB or more recommended)
CPU: Intel Core 2 Duo (Minimum) Intel Core i3 ™ or higher (Recommended)
Additional Info: Internet connection required for product activation.
